Descrição
Tamiya 70168 Double Gearbox Kit
Tamiya’s double gearbox packs two independent gear trains into a compact and affordable package that is great for small mobile robots. Each side can be assembled to have one of four gear ratios: 12.7:1, 38:1, 115:1, or 344:1.
![]() ![]() |

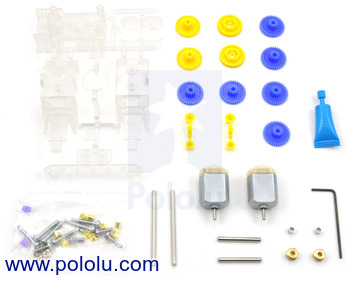

Tamiya 70168 double gearbox kit – clear. |
---|
Overview
The Tamiya double gearbox is a compact unit with two independent motors and gear trains. The kit includes two motors and all gears and parts to build any of the four possible gear ratio configurations (12.7:1, 38:1, 115:1, and 344:1). Although it is not typical, it is possible to assemble each side with different gear ratios. There are two possible output axle locations (for any given gear ratio, only one output location is possible).
Comparison to the Tamiya twin-motor gearbox![]() ![]() |
The double gearbox is very similar to the Tamiya 70097 twin-motor gearbox, as shown in the picture to the right. The gear ratio options of the two products complement each other well, but the mounting holes and overall dimensions vary slightly. The double gearbox is shorter and wider than the twin-motor gearbox, and the gears are a bit smaller and wider. This should make the double gearbox a bit more robust, though we have not heard any reports of the twin-motor gearbox gears breaking.
